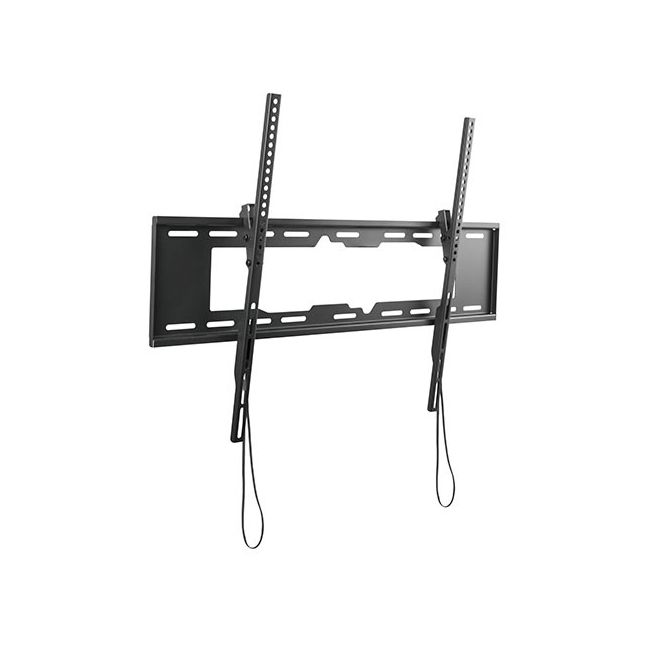

Brateck | Low Profile Tilt TV Wall Mount For most 55"-90" LED, LCD flat panel TVs | LP56-68T
$34.99
Key Specifications
- Screen Size Fit: Generally fits large flat-panel displays from 55" to 90".
- Weight Capacity: Supports up to 50kg / 110lbs.
- Tilt Range: Adjustable forward or backward tilt (typically around 8° to 12°) to reduce glare or adjust for high-eye-level placement.
- Locking Mechanism: Features an automatic click-in spring lock with quick-release pull cords for easy mounting and removal.
Availability: In stock
SKU
LP5668T
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet, Bracket Feet THK=2mm cold-rolled sheet, Wall Plate THK=2mm cold-rolled sheet
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 38x874x630mm (1.5"x34.4"x24.8")
Fit Screen Size: 55"-90"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400, 600x600, 800x600
Max. Mounting Hole: 800x600
Weight Capacity: 50kg (110lbs)
Strength Tested: 4 Times Approved
Profile: 38mm (1.5")
Tilt Range: 0°～-8°
Screen Freely Tilting: No
Installation: Solid Wall, Dual Stud (406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Hook-on Bubble Level (Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet, Bracket Feet THK=2mm cold-rolled sheet, Wall Plate THK=2mm cold-rolled sheet
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 38x874x630mm (1.5"x34.4"x24.8")
Fit Screen Size: 55"-90"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400, 600x600, 800x600
Max. Mounting Hole: 800x600
Weight Capacity: 50kg (110lbs)
Strength Tested: 4 Times Approved
Profile: 38mm (1.5")
Tilt Range: 0°～-8°
Screen Freely Tilting: No
Installation: Solid Wall, Dual Stud (406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: Hook-on Bubble Level (Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag, Compartment Polybag
